EDG Industries Positioning Loom - DD422/421 Positioning loom

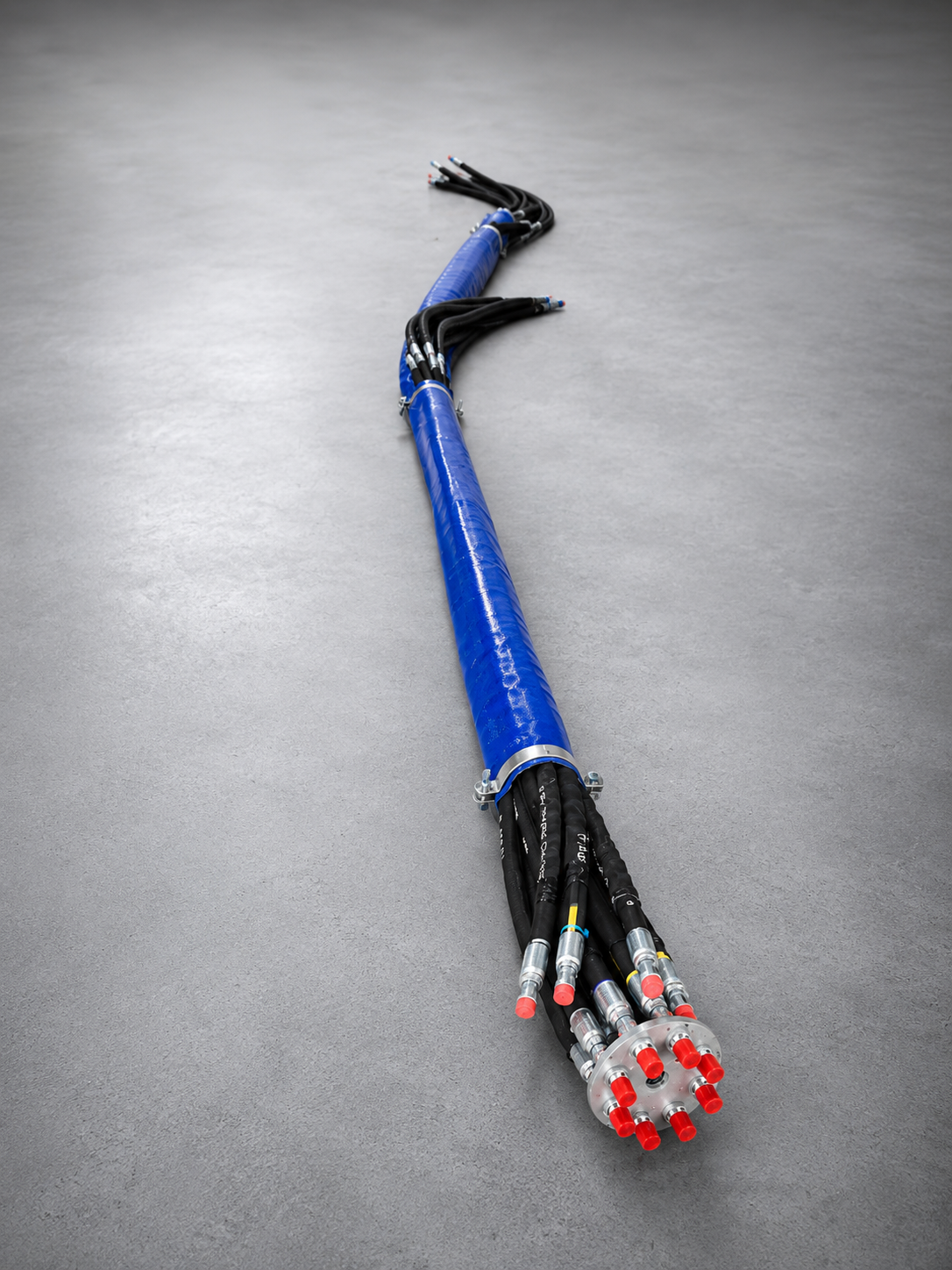

Designed specifically for DD421 and DD422 Sandvik Jumbo positioning systems, the EDG Industries Positioning Loom is engineered to maximise reliability and minimise downtime. Manufactured using premium R15 hydraulic hose throughout, each hose is colour coded and fitted with marked bulkhead fittings for fast, error-free installation.

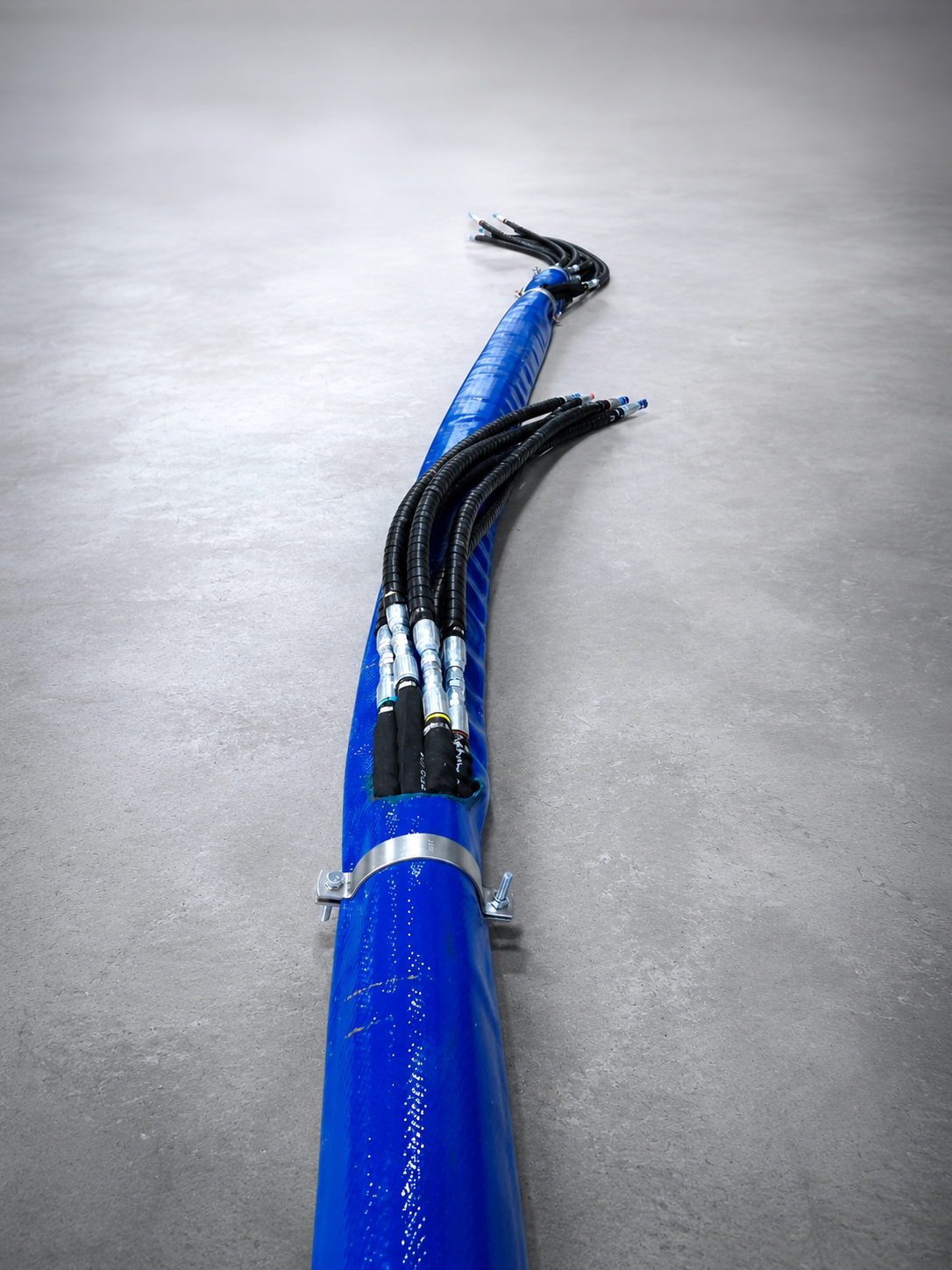

The 6.2m loom is protected by a heavy-duty TPU/polyester outer sleeve, with every hose individually wrapped in scuff sleeve for maximum abrasion resistance. The protective sleeve is secured multiple clamping points to prevent movement, while sealed loom ends help prevent fines and rock ingress, reducing internal wear.

Available as either a complete loom assembly with the 1.2m hose extensions or as the main loom only, providing flexibility to suit your maintenance requirements.

Key Benefits

• Premium R12 or R15 hose throughout

• Colour coded hoses for easy identification

• Marked bulkhead fittings for quicker installation

• Heavy-duty TPU/polyester protective sleeve

• Individual sleeve protection on every hose

• Sealed ends to prevent contamination and abrasion

• Available with or without 1.2m hose extensions

• Pre made ready to go

Reduce downtime. Increase production. Reduce Service time!

Built for underground conditions, engineered for reliability.
